Bidspirit auction | A Tigo Cloud Connect Advanced

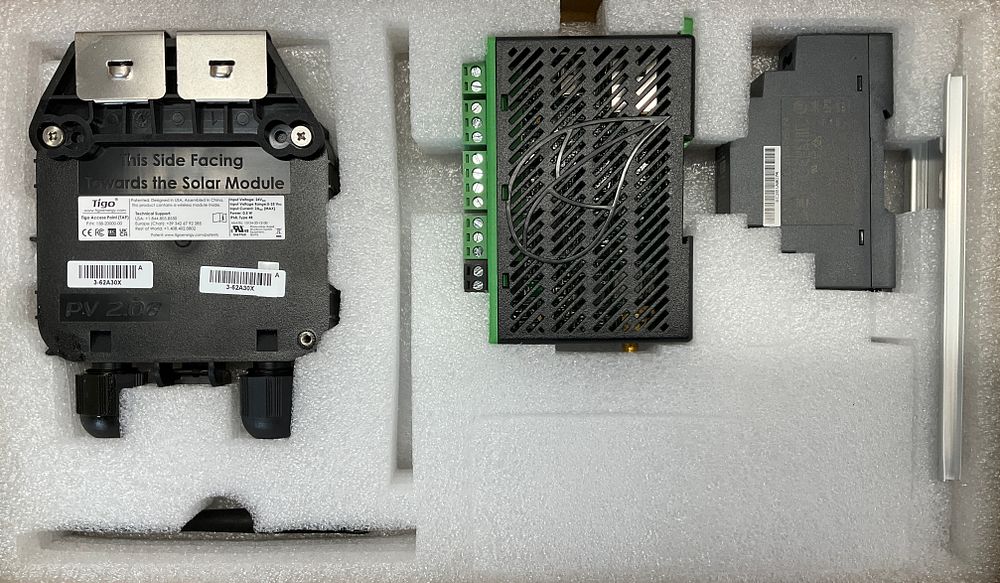

A Tigo Cloud Connect Advanced Solar Monitoring and Control Kit with TAP and Power Supply - BY ORDER OF THE OFFICIAL RECEIVER - This solar monitoring and control kit is manufactured by Tigo Energy and comprises three primary components alongside a section of aluminium DIN rail. The first component is a Tigo Access Point (TAP), part number 158-20000-00, which serves as a wireless gateway for solar module optimisers. Technical specifications for the TAP include an input voltage of 24VDC (range 5-25VDC), a maximum input current of 2A DC, and a power consumption of 0.5W. It features an IP68, Type 4R enclosure and carries CE, FCC, IEC, UKCA, and cRUus certifications. The second component is a Tigo Cloud Connect Advanced (CCA) data logger, model CCA, part number 336-20000-10. This management unit operates on 10-25VDC with a typical power consumption of 3W (10W maximum) and is rated for temperatures between -20 and 85 degrees Celsius. It bears CE, UKCA, CSA, FCC, and ANATEL marks. The third component is a Mean Well HDR-15-24 slim-profile DIN-rail power supply designed to power the CCA and TAP. This unit provides a 24VDC output and carries TUV, cULus, CE, UKCA, EAC, and LPS certifications. All components are presented in their original foam-lined protective packaging.
