Bidspirit auction | RoHS DOSIMETER RADIATION PROTECTION KIT

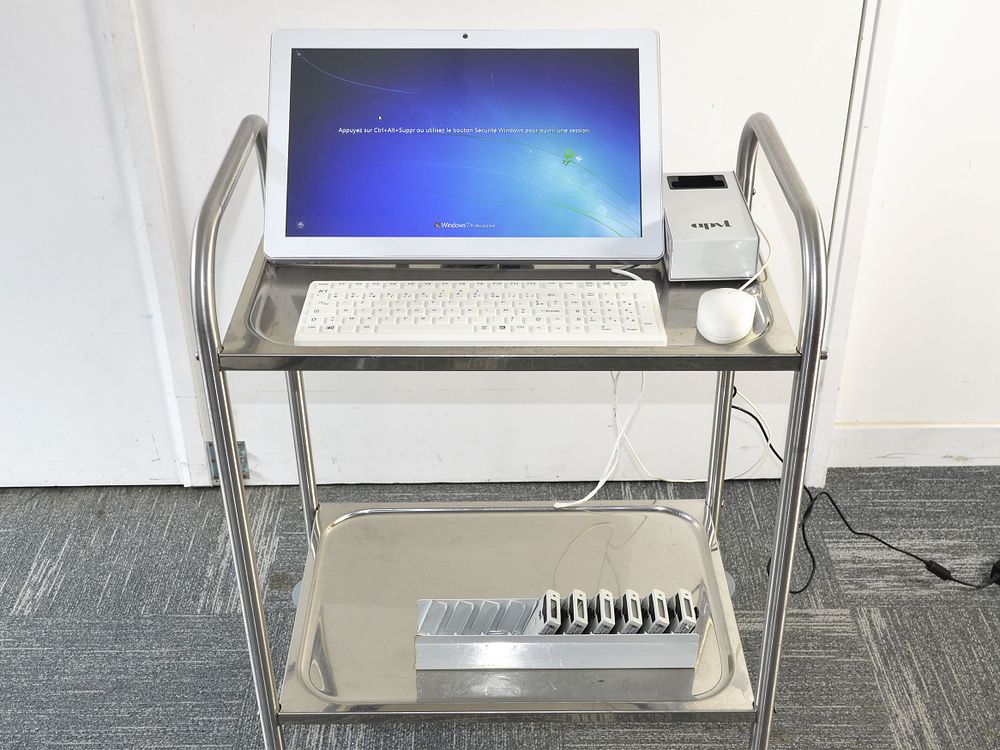

RoHS DOSIMETER RADIATION PROTECTION KIT Model K758-C68 - Composed of : 6 THERMOFISHER EPD MK2+ personal dosimeters Processing station equipped with SYGID 3 software, management and analysis software for operational dosimetry systems and radiation protection devices. It allows in particular to: • View personnel doses and peak dose rate • Manage access profiles • Report different types of alarms by email • Generate reports using a powerful statistical tool • Generate files for SISERI export • Anonymize data in accordance with GDPR FEATURES OF THERMOFISHER EPD MK2+ DOSIMETERS Sensitive to X-rays, gamma rays, ß particles Direct reading of dose equivalents Hp (10) [deep/whole body] and Hp (0.07) [shallow/skin] Display units: Sv and rem (with prefixes) OR scaled to Sv and cGy (with prefixes) Neutron response: 16 Sv (0 mrem to > 1600 rem) Display resolution: 1 μSv (0.1 mrem), up to 10 Sv Storage resolution: 1/64 μSv (=1.5 μrem) Dose rate display: 0 μSv/h to >4 Sv/h (0 mrem/h to >400 rem/h); auto-ranging Energy response: Photon: Hp(10): [All 137Cs refs]: ±50% 15 keV to 17 keV; ±20% 17 keV to 1.5 MeV; ±30% 1.5 MeV to 6 MeV; ±50% 6 MeV to 10 MeV Photon: Hp(0.07): [All 137Cs refs]: ±30% 20 keV to 6 MeV; ±50% 6 MeV to 10 MeV Beta: Hp(0.07): ±30% 250 keV to 1.5 MeV (ref. 90Sr/90Y) Angular response: Hp(10) 137Cs ±20% up to ±75º; Hp(10) 241Am ±50% up to ±75º; Hp(0.07) 90Sr/90Y ±30% up to 55º Accuracy: Hp(10) 137Cs ±10%; HP(0.07) 90Sr/90Y ±20% Dose rate linearity: Hp(10) 137Cs: ±10% 1 Sv/h, Hp(0.07) 90Sr/90Y: ±20% 1 Sv/h ELECTRICAL AND MECHANICAL A single recessed button controls display and function Power supply: Single AA battery, 1.5V alkaline or 3.6V lithium thionyl chloride; Battery voltage is displayable (subject to displaying configuration parameters); ON/OFF modes switchable via IR communication link or from a button (if enabled), to save power in intermittent use applications: Typical Battery Life: 1.5V Alkaline - 45-50 days continuous, extending to 70-80 days typical OFF mode usage. 3.6V Lithium - 5 months continuous, extending to ~10 months typical OFF mode usage Alarm: Audible and LED visual alarms for dose, dose rate, countdown, reading time and failure mode; Fully sealed; Dose time alarm display, based on current dose rate; Typical audible alarm of 98 dB(A) at 20 cm with multiple modes; Hp(10) dose chirp adjustable from 0.01 to 100 μSv/chirp (1 μrem to 10 mrem/chirp); Optional acoustic coupler/earpiece Communications: Infrared (IR) interface up to 1 meter (39”) range Dimensions: 85 x 63 x 19 mm (3.3” x 2.5” x 0.8”), excluding clip Weight: 95 g (3.2 oz) including battery and clip Housing material: impact-resistant polycarbonate/ABS blend MEMORY 10 years of data retention without battery Short-term dose records for Hp(10) and Hp(0.07) Additional total dose stores for multiple shifts Peak dose rates as a function of time of occurrence All stored times have a resolution of 1 second Selectable fast dose rate response setting Recorded dose suppression events Countdown: 1 hour, 39 minutes, 59 seconds maximum, 1 second resolution- Event Log: 23 entries for recording alarm times etc. for incident evaluation Dose profile history: adjustable interval from 2 seconds to 35 hours, stores Hp(10) and Hp(0.07) transitions at 1 μSv (0.1 mrem) resolution; will store up to 579 records for transitions down to 127 μSv or less
