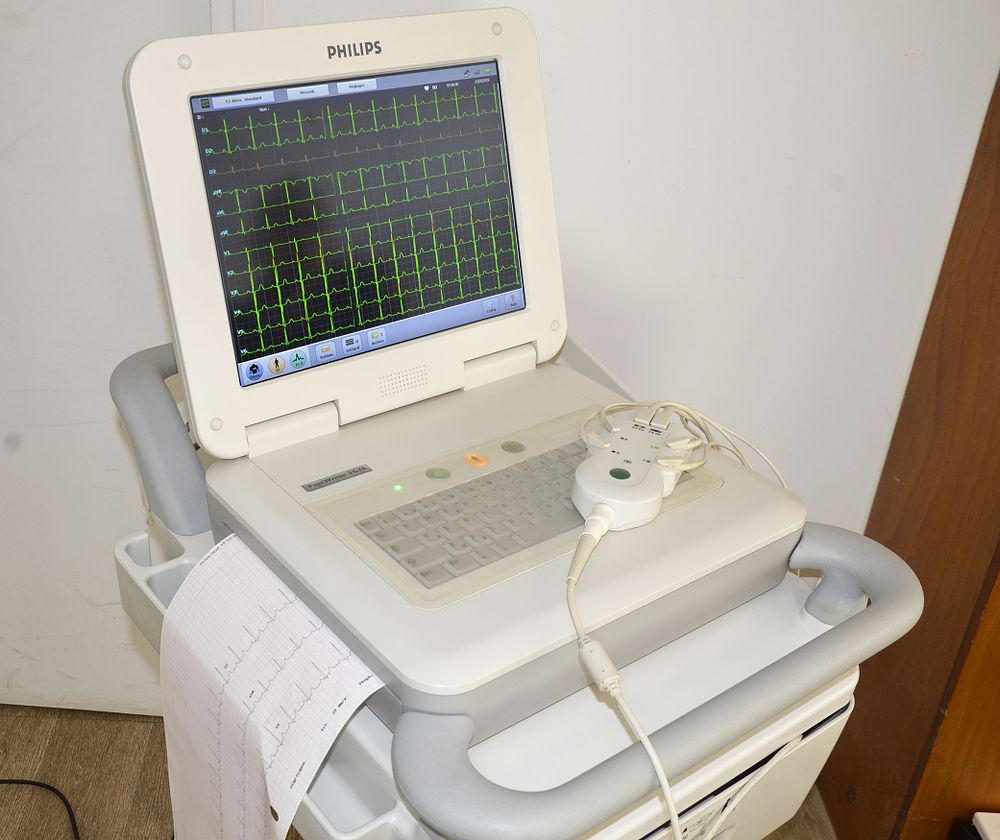

Bidspirit auction | PHILIPS PAGEWRITER TC70 ECG ELECTROCARDIOGRAM

PHILIPS PAGEWRITER TC70 ECG ELECTROCARDIOGRAM - PHILIPS PAGEWRITER TC70 ECG ELECTROCARDIOGRAM Technical sheet Simultaneous acquisition of leads: 18 leads maximum Full Recording: 20-minute 16-lead history and 10-second full ECG report Scheduled ECG: Support for pharmaceutical stress test protocols Report Storage/Transfer: High fidelity recording at 500 Hz over 10 seconds for up to 16 leads in XML format (published schema) Philips DXL 18-lead ECG algorithm Interpretive Statements: Over 600 interpretive statements with integrated pediatric analysis Electrode Wire Reversal Detection: Electrode positioning software for detecting 20 wire reversal possibilities Removing boundary statements: Three configurable settings Reasons: Possible selection of reasons for all diagnostic statements User interface Touchscreen: 3-step operation/pop-up application/5-wire resistive touchscreen Keyboard: Standard 65-key fully alphanumeric keyboard with special character support Screen: 15” (38 cm) TFT Aids in the diagnosis of STEMI-type infarctions ST vector graph: Two polar representations of the ST segment in the frontal and transverse planes Critical values: Highlighting 4 conditions requiring immediate clinical attention AST (D02) Query and retrieval of patient administrative information: Ability to automatically retrieve all patient administrative information Network-available features (require IntelliSpace ECG) Centralized management of time indications: Possibility of synchronizing the time with the main clock of the network Review Requests: Ability to configure reminder rules for electrocardiograph task lists Signal quality indicators Contact fault detection: The anatomical diagram of the leads indicates the location and labeling of each disconnected or improperly attached wire/electrode Lead Color: Four colors indicating the signal quality of the curve Electrode Wire Reversal Detection: Electrode positioning software for detecting 20 wire reversal possibilities+J603 Heart rate Continuous display of the patient's heart rate Print Preview: Full screen preview of the full 16-lead report before printing Training Application Help: Built-in graphical help screens for main functions Tutorial: Interactive and dynamic PC animation covering all important clinical features Signal processing Patient Interface Module: Remotely controlled digital module with microprocessor, providing 5 μV resolution Pre-processing filters Mains interference: 50 to 60 Hz Signal Processing: Artifact Rejection and Baseline Drift Presentation Filters - 10 Second Reports Low-pass filter: 40/100/150 Hz High-pass filter: 0.05/0.15/0.5 Hz Screen Size: 30.4 x 22.8 cm color LCD touchscreen with backlight Resolution: 1024 x 768 pixels resolution Presentation Filters - Rhythm High-pass filter: 0/05/0.15 Hz Low-pass filter: 40/100/150 Hz Patient Connections Patient Interface Module (PIM): Remote, microprocessor-controlled digital module Presentation Filters – Rhythm Low-pass filter: (40 Hz, 100 Hz, 150 Hz) Printer Type: High-resolution digital printer using thermal paper Resolution: 200 dpi (voltage axis) by 500 dpi (time axis) at 25 mm/s Physical characteristics Dimensions: 330 x 405 x 135 mm Weight: 13 kg Connectivity LAN network IEEE 802.3 10/100 Base‑T Ethernet connection via RJ45 connector (standard) Wireless connection (D21) Optional software required for wireless LAN connection. Wireless Authentication Wireless LAN connection compatible with 802.11 a/b/g/n. Internal storage Up to 200 ECGs in internal flash memory External storage Up to 200 ECGs per USB stick (optional) COLLECTION IN SWITZERLAND (Martigny)
