Bidspirit auction | HOLOGIC 3DIMENSIONS 2D AWS 9000

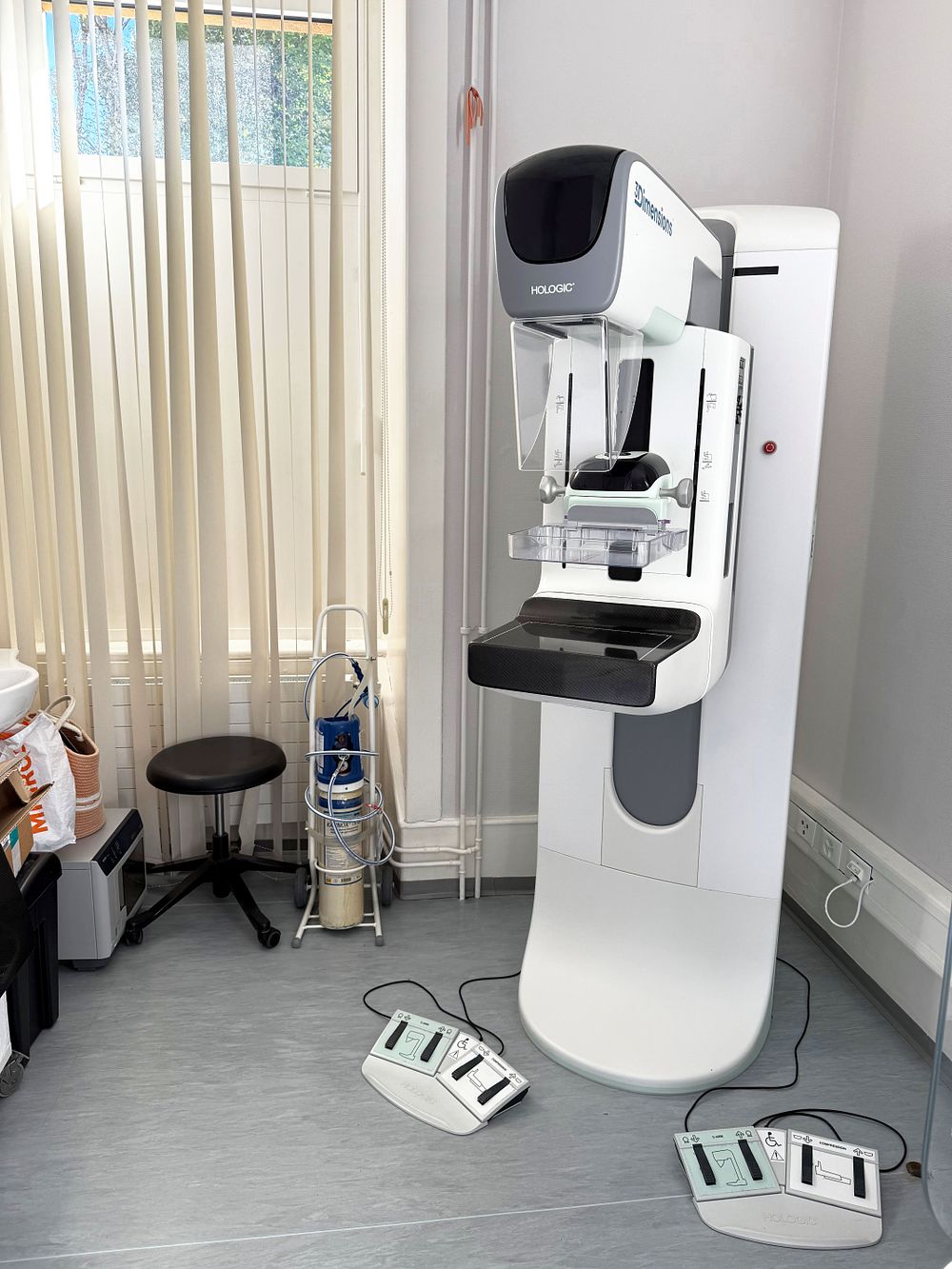

HOLOGIC 3DIMENSIONS 2D AWS 9000 MAMMOGRAPH with amorphous selenium detector - HOLOGIC 3DIMENSIONS 2D AWS 9000 MAMMOGRAPH with amorphous selenium detector Technical details and configurations STANDARD Generator • Power: 7.0 kW, 200mA at 35 kV • Maximum power: 9.0 kW • kV range: 20 kV to 39 kV in 1 kV steps • mAs range: 3.0 mAs to 400 mAs • mA range: 10 mA to 200 mA, large focus 10 mA to 50 mA, small focus Tube • Anode: Tungsten, rotating • Anode type: Bi-angular • Rotation: 9500 rpm) • Angle: 16º (large focus), 10º (small focus) • Heat capacity: 300,000 HU (222 kJ) • Focus: 0.1 (small), 0.3 (large) according to IEC • Filtration: 0.050 mm Rhodium (Rh), 0.050 mm Silver (Ag), 0.7mm Aluminum (Al) • Window: Beryllium Exposure • 1.2 mGy for ACR Phantom: Conventional mode • 1.4 mGy for ACR Phantom: Tomo mode Collimation • Collimation mode: automatic or programmable • Predefined: 24 cm x 29 cm 18 cm x 24 cm 15 cm x 15 cm 10 cm x 10 cm 7.0 cm x 8.5 cm C-arm • Vertical movement: 71 cm to 142 cm, motorized • Rotation: +195º to -155º • SID: 70 cm • Face protection: can be folded down or retracted by pivoting Compression mode (user-selected) • Pre-Compression: 70 to 134 Newton, motorized • Compression: 89 to 178 Newton, motorized • Dual compression: First margined with pre-compression, increase of stepwise compression with each activation until full compression • Manual compression: 300 N maximum • Compression pallet tilt: fixed or elastic Magnification : Factor 1.5 or 1.8 Power supply • Supply voltage: 200/208/220/230/240 VAC nominal ± 10% • Input current: 40 A single-phase or min. 3 x 25A with additional transformer 4 A pause, max. 65A 5 sec. Standard component • “Screening” compression palette: 24 x 29 cm 18 x 24 cm Special palette for small breasts • Enlargement palette: 10cm palette • Accessories: Face protection Magnification table 2 dual-function control pedals Digital receiver • Type: TFT detector, direct digital conversation, 24x29 cm • Technology: Amorphous selenium • Resolution: 70μm, 3328x4096 pixels, 14 bit • Anti-diffusion grill: Self-retracting for enlargement Hologic Dimensions AWS 9000 AWS - Acquisition Workstation • Processor/CPU: Multi-Core Intel • RAM: 32 GB RAM • Hard drive: 1 TB • Archiving: DVD +/- R/W • Display Monitor: 2MP, Medical Monitor with DICOM Pre-sets • User monitor: 1.2MP LCD touch monitor • Operating system: WIN 10 • DICOM service classes: Worklist, Storage, Storage Commitment, Query/Retrieve, • IHE Profile: Scheduled Workflow, Patient Information Reconciliation and Mammography Image • User interface: Keyboard, Touchpad, Mouse • Personalized height adjustment (84-114cm, with login) • Safety power supply: UPS 230 Hologic Paddle Rack • Storage: 2 to 3 compression pallets • Dimensions: lxdxh = 92 x 10 x 18 cm • Material: Aluminum with RAL 1013 coating (pearl white) with antistatic inner lining 9kVA transformer • DRUE4400, 3AC400V+N / AC230V • For connection with 3x 25A
